Ubiquiti WAVE

$1,037.85$2,583.90

We configure this PtMP bridge kit for you. Just select the number of Stations (Wave Long-Range) your kit needs. They connect to the Access Point(Wave AP)

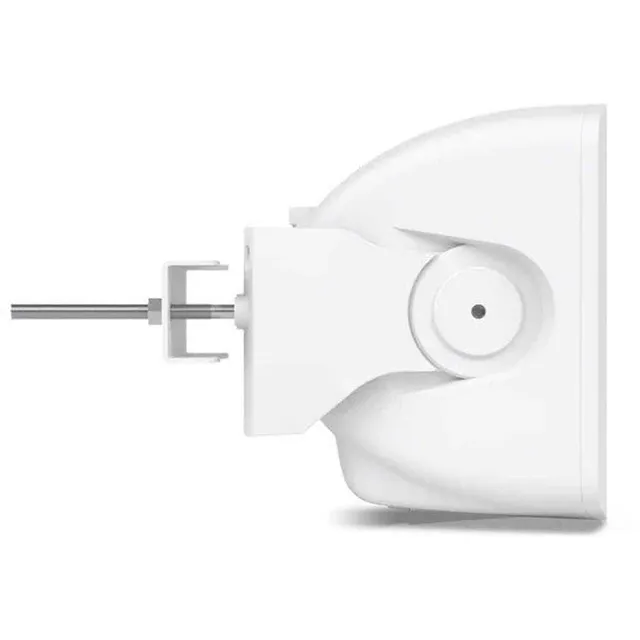

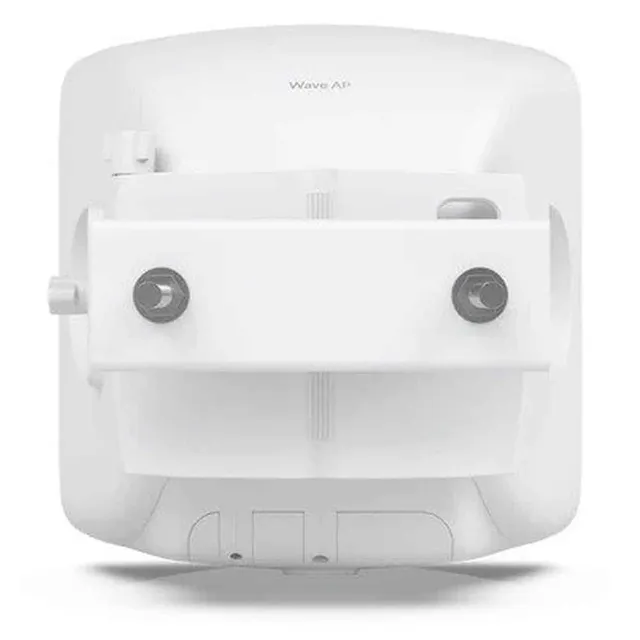

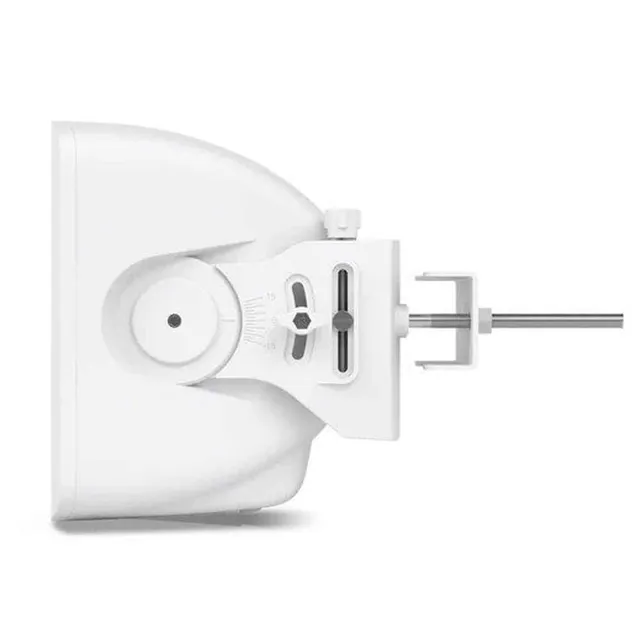

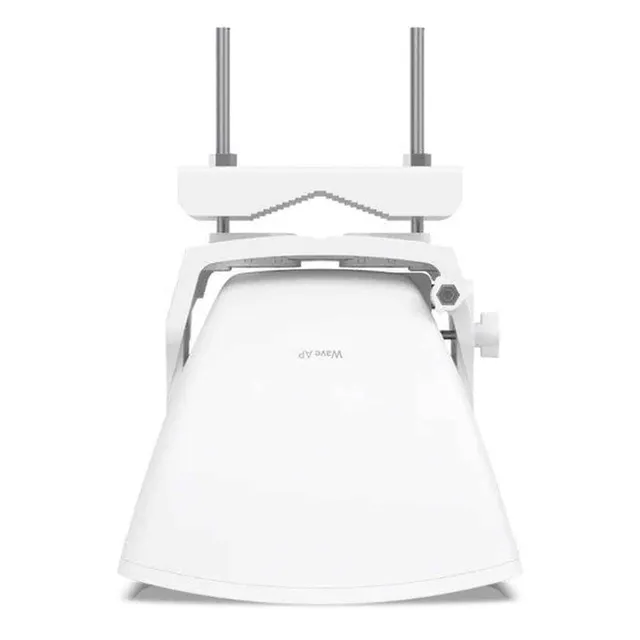

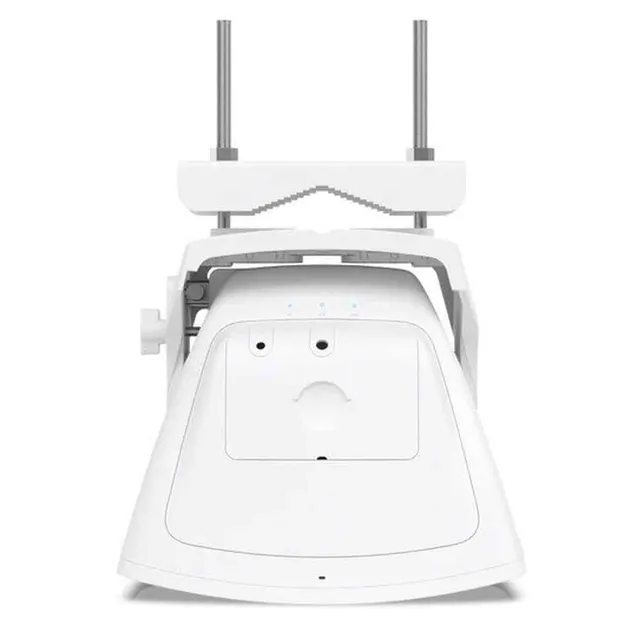

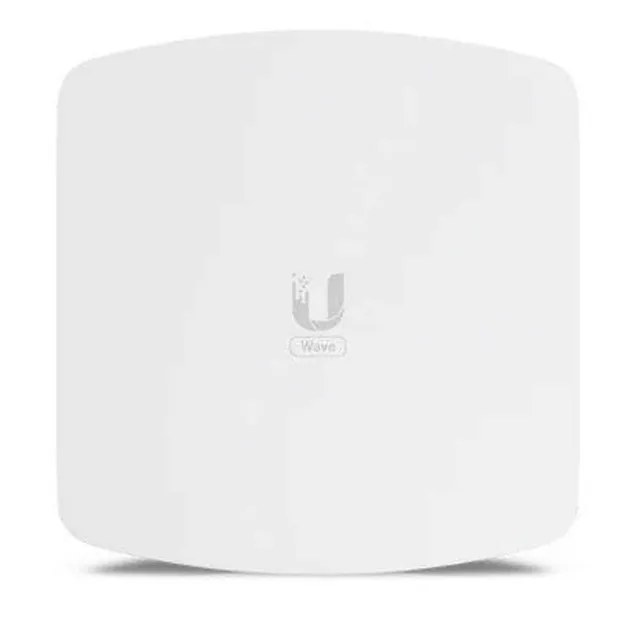

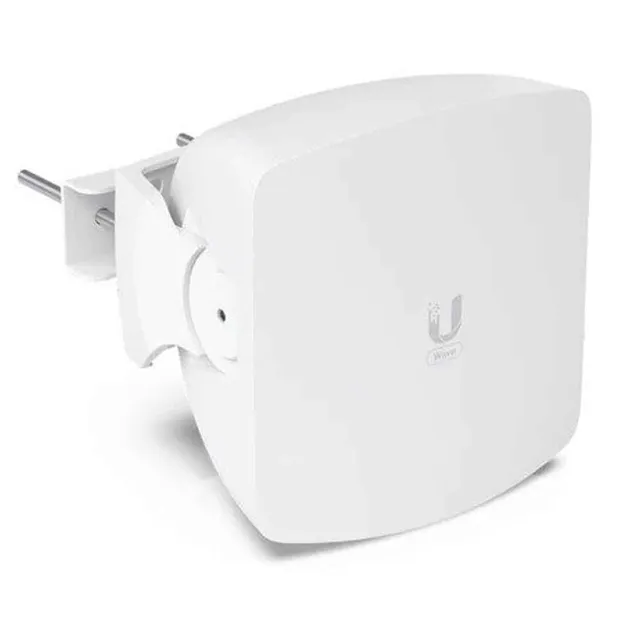

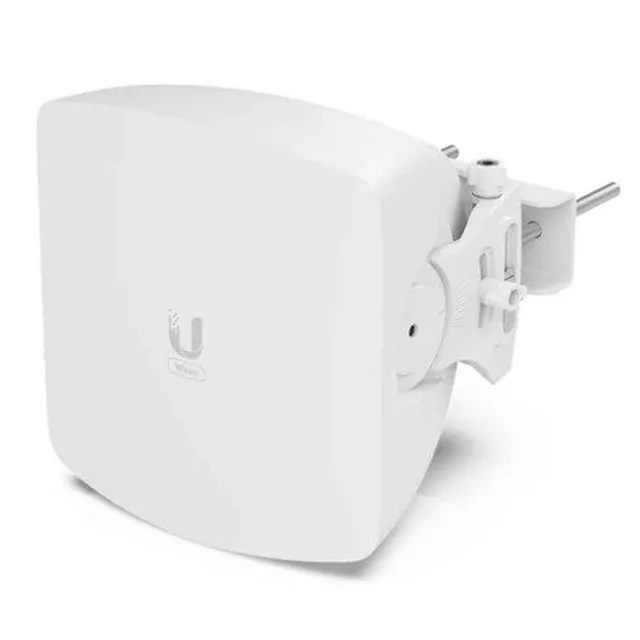

Wave AP 60 GHz PtMP access point powered by Wave Technology.

60 GHz 5.4 Gbps max. throughput (2.7 Gbps duplex) main radio

30° sector coverage

5 GHz 800+ Mbps weather-resilient backup radio

(1) 2.5 GbE and (1) 10G SFP+ WAN ports

15 client capacity:
— Wave Pro (8 km link range)
— Wave Long-Range (8 km link range)
— Wave Nano (5 km link range)

Integrated GPS & Bluetooth

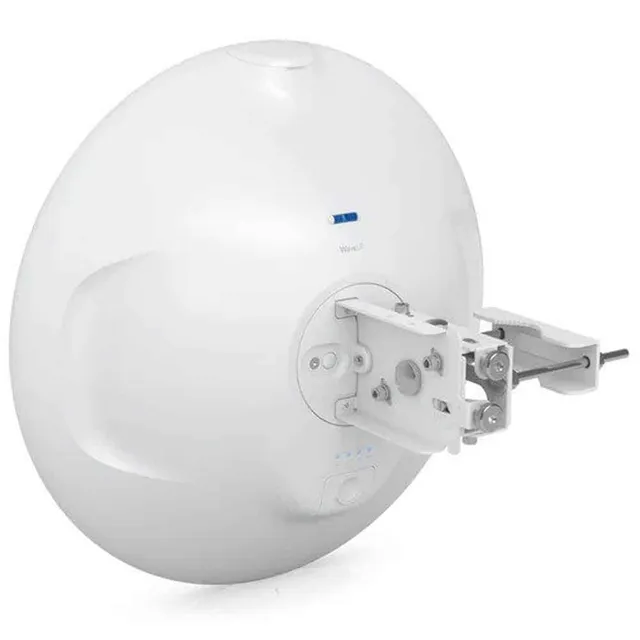

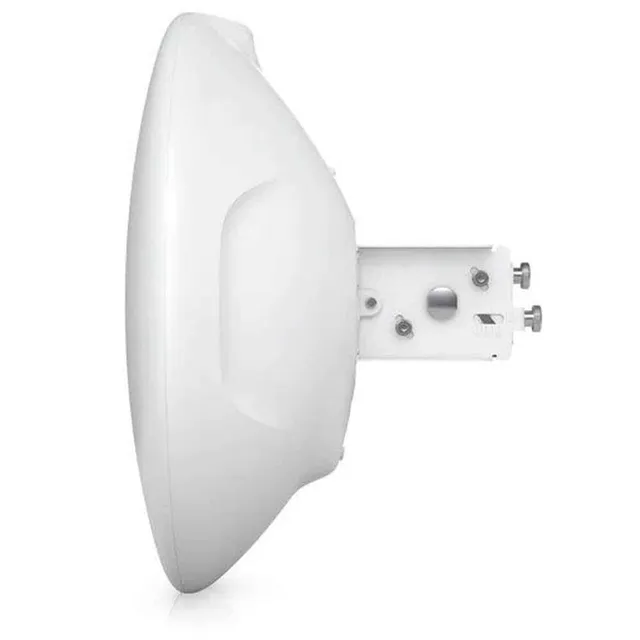

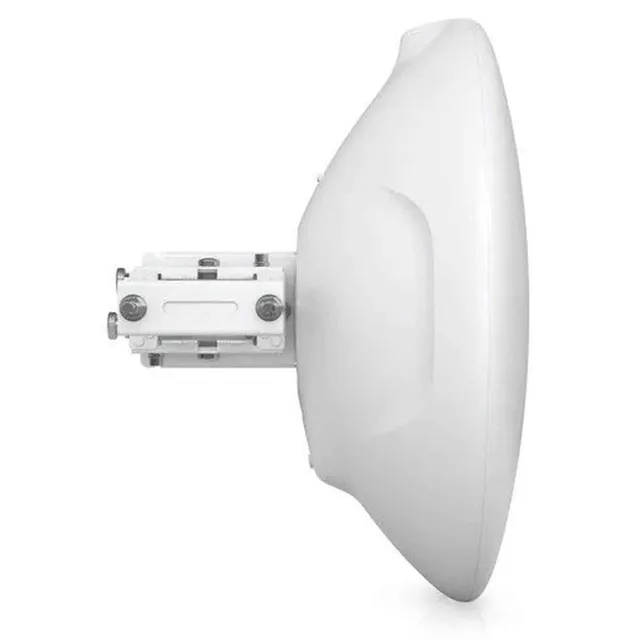

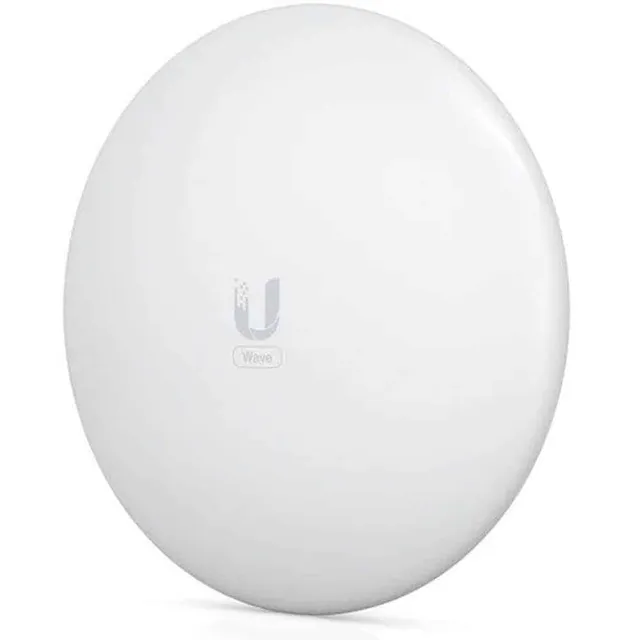

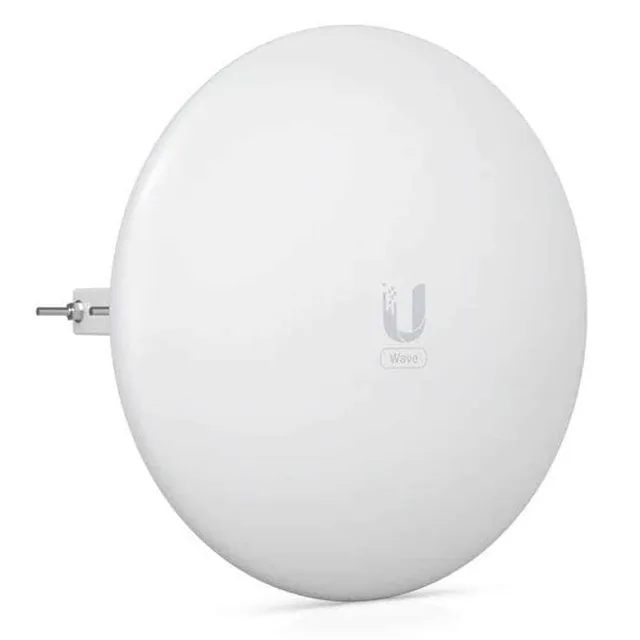

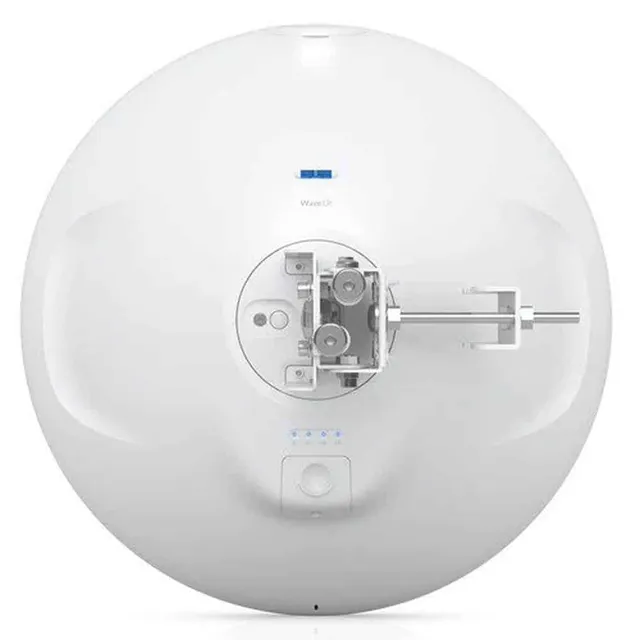

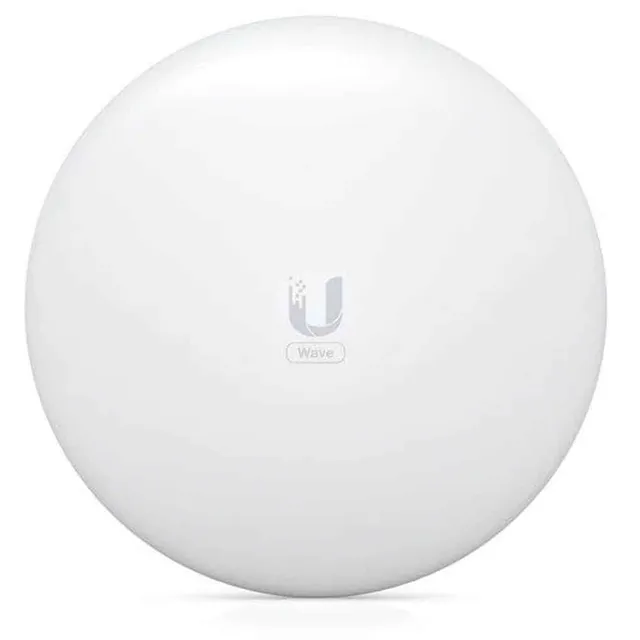

Wave Long-Range 60 GHz PtMP station powered by Wave Technology.

Compatibility and supported distances:
— Wave AP – 8 km link range
— Wave AP Micro – 6 km link range

2 Gbps max. throughput (1 Gbps duplex)

5 GHz 800+ Mbps weather-resilient backup radio

(1) GbE RJ45 port

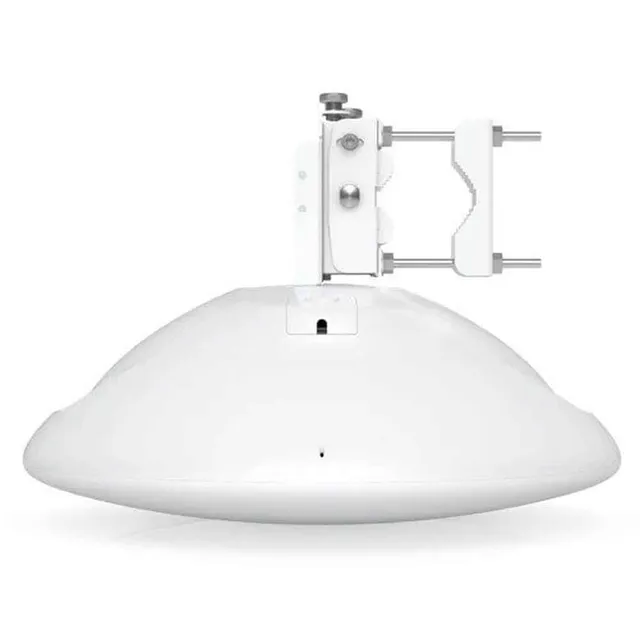

Precision alignment mount

Integrated GPS & Bluetooth

SKU: WBS-PTMP-WAVE Categories: , ,

Description

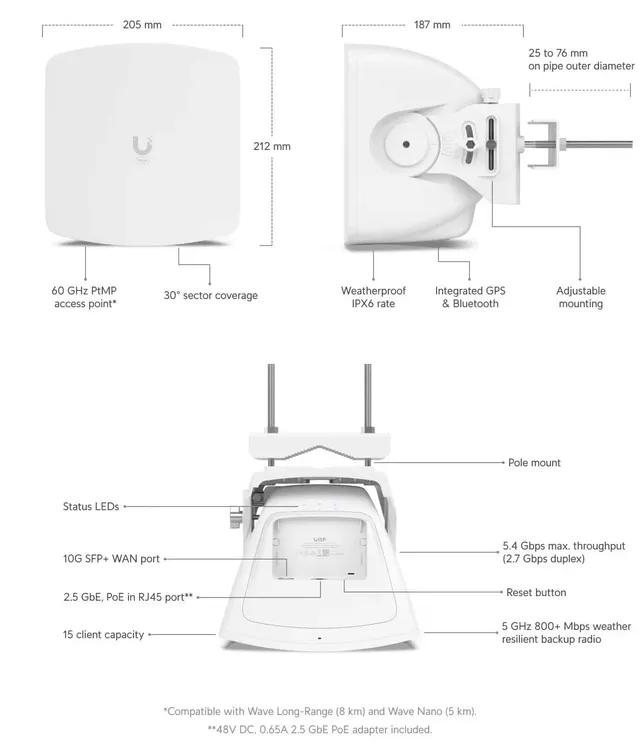

Wave AP

Technical Specifications

Mechanical
Dimensions 212 x 205 x 187 mm (8.3 x 8.1 x 7.4″)
Weight 2.3 kg (5.07 lb)
Enclosure materials Aluminum alloy, UV stabilized polycarbonate
Pole mount diameter 25 to 76 mm (1 to 3″) on pipe outer diameter
Wind loading 98 N at 200 km/h (22 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory DDR3L 512 MB
Networking interface (1) 2.5GbE RJ45 port (100/1000/2500)*
(1) 10G SFP+ port (1/10)
* Active only when SFP+ port is down.
Max. power consumption 24W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A 2.5GbE PoE adapter (included)
Supported voltage range 44–54V DC
22–27V DC
GPS Yes
Button Factory reset
LEDs Power, Ethernet, GPS
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Software
Operating mode PtMP access point
Ubiquiti specific features Wave technology
Services UISP, ping watchdog, NTP client, SNMP
Tools Antenna alignment, discovery utility, ping, trace route, speed test
Network Bridge mode
Application requirements UISP: Version 1.5.7 and later
System
Total throughput 5.4 Gbps (2.7 Gbps duplex)
Supported clients count 15
Max. range Connecting to a Wave Pro: up to 8 km
Connecting to a Wave Long-Range: up to 8 km
Connecting to a Wave Nano: up to 5 km
Encryption WPA2-PSK (AES)
RF
Operating frequency* 57–71 GHz
*Depends on regulatory region.
Channel bandwidth 2160, 1080 MHz
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 24 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 30°
Elevation: 3 dB 3°
Electrical downtilt
Back-Up RF
WiFi standard 802.11ax (WiFi 6)
Operating frequency*
US/CAWorldwide
U-NII-1 5150 – 5250 MHz
U-NII-2A 5250 – 5350 MHz
U-NII-2C 5470 – 5725 MHz
U-NII-3 5725 – 5850 MHz5150 – 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain 12 dBi
Cross-pol isolation 10 dB
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 35°
Elevation: 3 dB 60°
Electric downtilt
LEDs
Power Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet Flashing white: Ethernet traffic detected
Flashing blue: SFP+ traffic detected
GPS Blue: receiving at least (4) GPS satellite signal

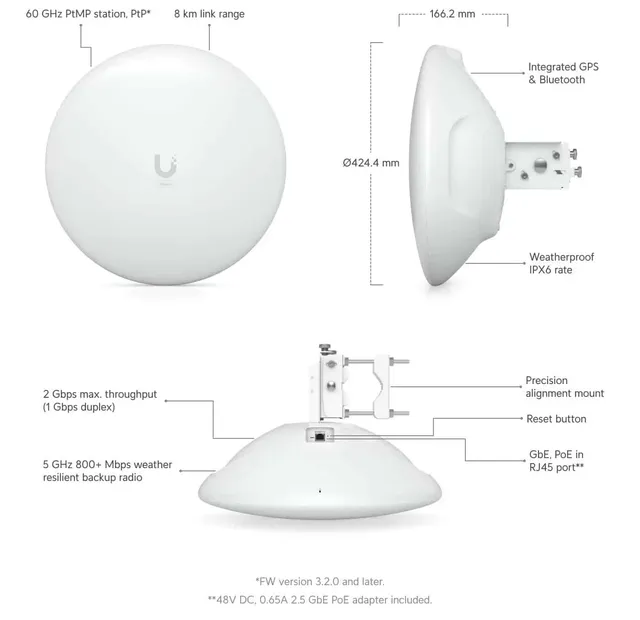

Wave-LR

Technical Specifications

Mechanical
Dimensions Ø424.4 x 166.2 mm (Ø16.7 x 6.5″)
Weight Without mount: 2.59 kg (5.7 lb)
With mount: 3.79 kg (8.4 lb)
Enclosure material UV stabilized plastic
Mount material Stainless steel
Pole mount diameter 25 to 76.2 mm (1 to 3″) on pipe outer diameter
Wind loading 286 N at 200 km/h (64.3 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Dual-core ARM® Cortex®-A53 at 1 GHz
Memory DDR3L 512 MB
Networking interface (1) GbE RJ45 port
Max. power consumption 20W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A gigabit PoE adapter (included)
Can be powered by a UISP Router or UISP Switch
Supported voltage range 44–54V DC
22–27V DC
GPS Yes
Button Factory reset
LEDs Power, Ethernet, GPS, link
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Software
Operating mode PtMP station, PtP*
*FW version 3.2.0 and later.
Ubiquiti specific features Wave AI, discovery protocol
Services UISP, ping watchdog, NTP client, SNMP
Tools Antenna alignment, discovery utility, ping, trace route, speed test
Network Bridge/Router* mode
*Router is available in PtMP station mode only.
Application requirements UISP: Version 1.4.5 and later
System
Total throughput 2 Gbps (1 Gbps duplex)
Max. range 8+ km
Encryption WPA2-PSK (AES)
RF
Operating frequency* 57–71 GHz
*Depends on regulatory region.
Channel bandwidth 2160, 1080 MHz
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 46 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1°
Elevation: 3 dB 1°
Back-Up RF
WiFi standard 802.11ax (WiFi 6)
Operating frequency*
US/CAWorldwide
U-NII-1 5150 – 5250 MHz
U-NII-2A 5250 – 5350 MHz
U-NII-2C 5470 – 5725 MHz
U-NII-3 5725 – 5850 MHz5150 – 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain 22 dBi
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 8°
Elevation: 3 dB 8°
Cross-pol isolation 20 dB
LEDs
Power Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet Flashing blue: Ethernet traffic detected
GPS Blue: receiving at least (4) GPS satellite signal
Links White: 5GHz link
Blue: 60GHz link

Additional information

Weight N/A
Dimensions N/A
Stations

1 Station, 2 Stations, 3 Stations, 4 Stations, 5 Stations
