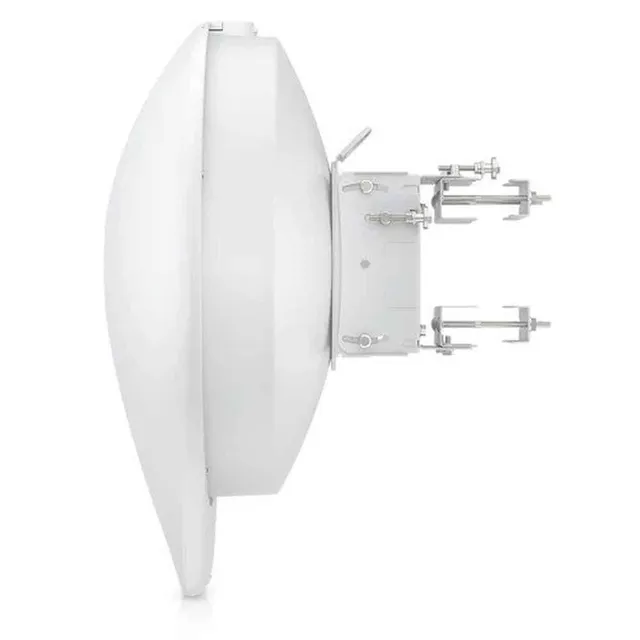

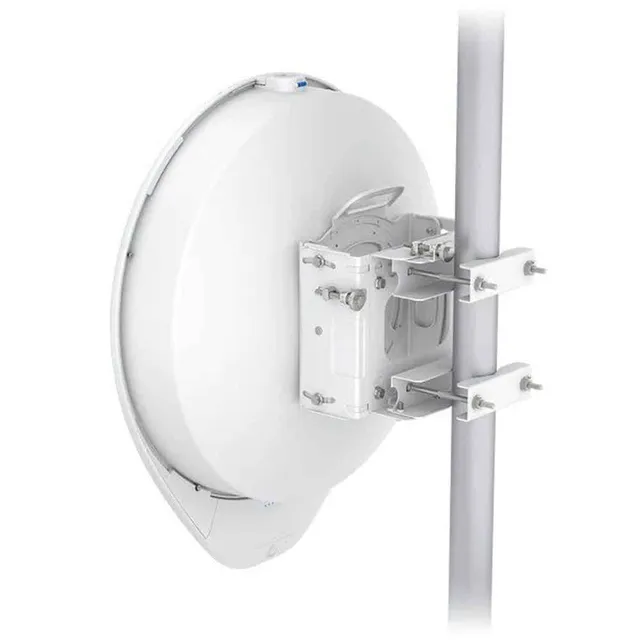

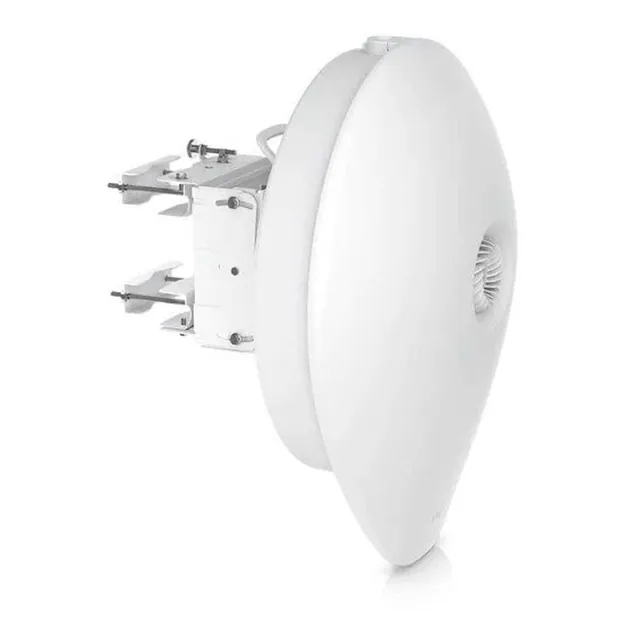

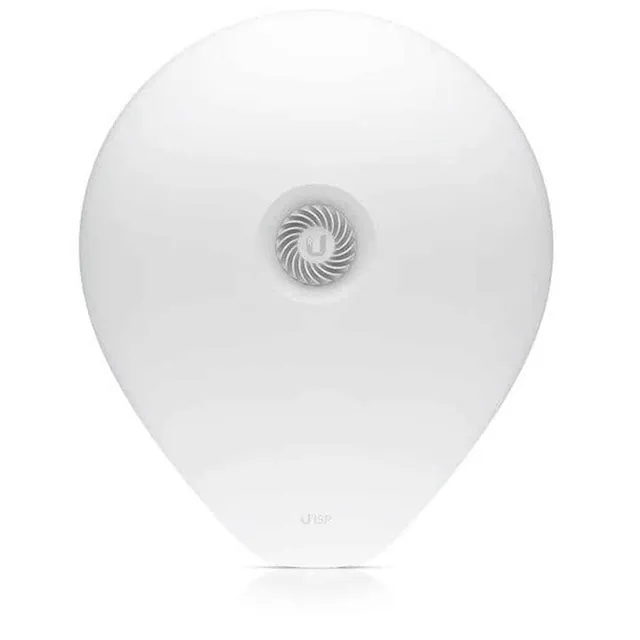

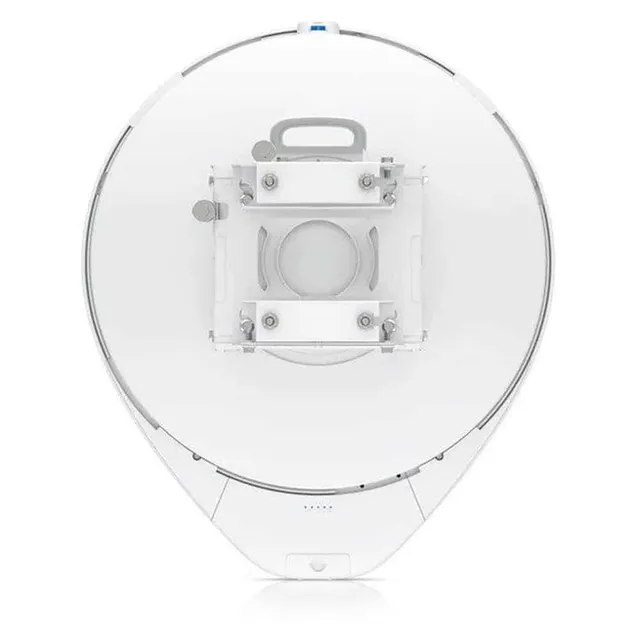

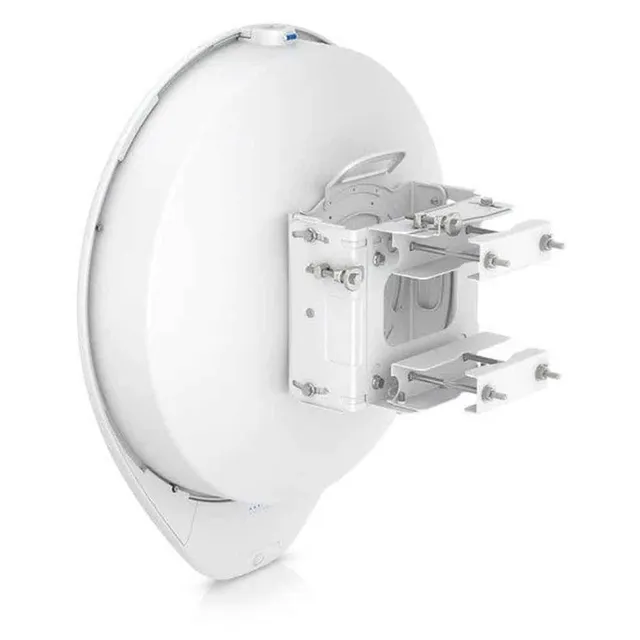

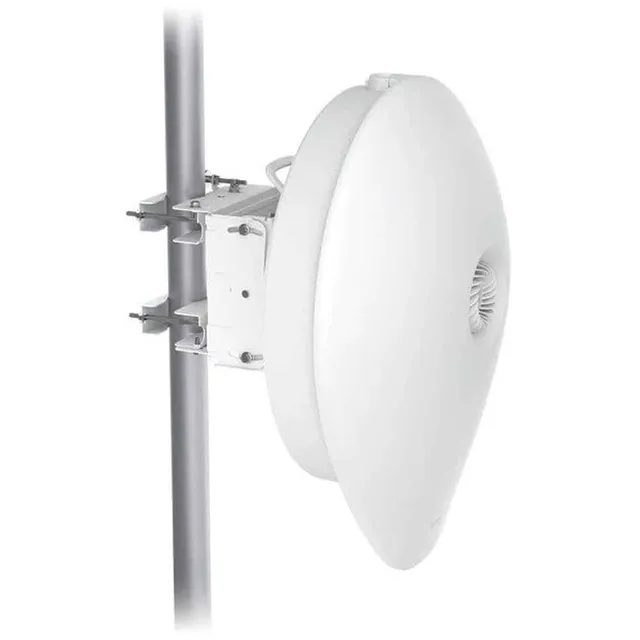

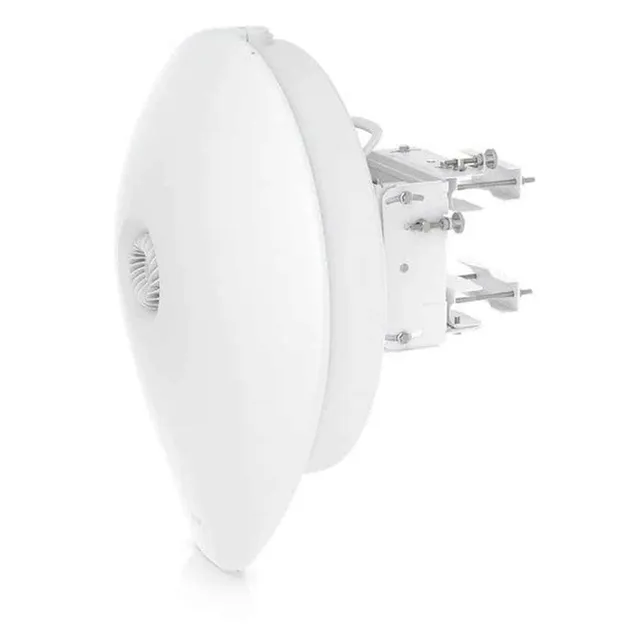

UBIQUITI NETWORKS AF60-XG-US 60GHZ AIRFIBER PTP 6GBPS PTP Wireless Bridge Kit(WBS-PTP-AF60-XG)

$2,535.00

UBIQUITI NETWORKS AF60-XG-US

  • Our FASTEST Wireless Bridge!!
  • 4+ km, multi-gigabit, 60 GHz bridge with SFP+ support.
    4+ km link range
  • 6 Gbps max. throughput
  • 5 GHz 800+ Mbps weather-resilient backup radio
  • (1) GbE and (1) 10G SFP+ port
  • Precision alignment mount
  • Integrated GPS & Bluetooth
  • Terragraph Certified

Available on backorder | Special Order 14 days

SKU: WBS-PTP-AF60-XG Categories: , ,

Description

UBIQUITI NETWORKS AF60-XG-US



Technical Specifications

Mechanical

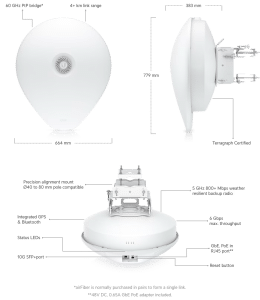

Dimensions 779 x 664 x 383 mm (30.68 x 26.14 x 15.06″)
Weight Without mount: 8.6 kg (19 lb)
With mount: 13 kg (28.7 lb)
Enclosure materials UV stabilized polycarbonate, steel
Mount material Galvanized steel
Mounting Precision alignment kit (included)
Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15″)
Wind loading 422 N at 200 km/h (94.86 lbf at 125 mph)
Hardware
Processor Quad-Core ARM® Cortex® A72 at 1.6 GHz
Memory 2 GB DDR4
Networking interface (1) GbE RJ45 port
(1) 1/10G SFP+ port
Max. power consumption 31.2W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A Gigabit PoE adapter (included)
Supported voltage range 44–54V DC
22–27V DC
GPS Yes
RF connections Internal
Button Factory reset
Operating temperature -40 to 55° C (-40 to 131° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE, terragraph
Software
Operating mode PtP only
Services UISP, ping watchdog, NTP client, system log
Utilities Antenna alignment tool, discovery utility, ping, speed test
Management application UISP web: Version 1.4.3 and later
UISP iOS™ and Android™: Version 2.19 and later
System
Max. throughput 5 GHz: 866.6 Mbps
60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)
Max. range 4 km
Encryption WPA2-PSK (AES)
RF
Operating frequency* 57–66 GHz
* Depends on regulatory region.
Channel bandwidth 2160 MHz/4320 MHz (With channel bonding enabled)
Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*Depends on the channel bandwidth.
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1.6°
Elevation: 3 dB 1.6°
Back-Up RF
Operating frequency*
US/CA
U-NII-1 5150 – 5250 MHz
U-NII-3 5725 – 5850 MHz
Worldwide 5150–5875 MHz
*Depends on regulatory region.
Channel bandwidth 20/40/80 MHz
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 5°
Elevation: 3 dB 5°
LEDs
Power Flashing white: bootup in progress
White: not connected to UISP™ console
Blue: connected to UISP console
Ethernet Flashing blue: ethernet activity
GPS Blue: receiving at least (4) GPS satellite signals
60G Blue: active connection
5G Blue: active connection

Additional information

Weight 464 oz
Dimensions 35 × 24 × 24 in
