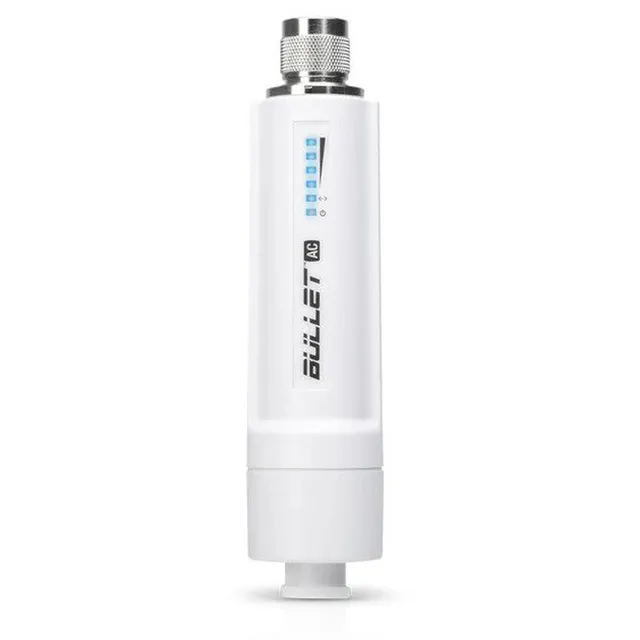

Ubiquiti Bullet AC 360° PTMP


  • SHARE YOUR INTERNET: Share your local network with all of your buildings without having to dig trenches and run wire! Finally, the Internet in the shop for email and youtube.
  • PLUG AND PLAY: Just plug one ethernet cable into your Local Area Network and the included power/LAN brick, and the other ethernet cable that supports Power over Ethernet into the airMAX Bullet AC’s
  • NO CONFIGURATION NEEDED: We did all the hard work. Each pair is expertly configured in Transparent Bridge Mode with a randomly generated unique WPA Key. Once they are connected, the remote buildings are now on your local network.
  • ONE INTERNET BILL: Stop paying your ISP for a separate Internet connection for your other buildings. Connect them with this outdoor wireless bridge to your main building and save!
  • LONG DISTANCE HIGH SPEED: This Kit uses the 5GHz band. With a clear line of sight, these transmitters can create a wireless bridge miles apart! These wireless network extenders are capable of speeds up to 450 Mbps.
  • WHICH WIRELESS BRIDGE IS RIGHT FOR YOU: Check our Chart or Contact us and let us know your project goals, and we’ll help you decide.

Not sure where to place your units or how high to place them? Try checking out your location with Ubiquiti’s tools Or LigoWave’s tools  or we can do it for you. Just contact us.



  • Dual-Band Frequency: The Bullet AC covers both 2.4 and 5 GHz spectrums, covering a wide range of frequency bands that work well for both short and long-distance links.
  • Passive Power over Ethernet (PoE): 24V Passive PoE functionality is included. Both power and data are carried over a single Ethernet cable to the Bullet AC. Use a PoE Adapter (not included) or an optional PoE switch.
  • Output Power: The Bullet AC offers up to 22 dBm of output power.
  • Weatherproof Design: The Bullet AC features a weatherproof design. Made from a high-grade, powder-coated aluminum, the casing can withstand nature’s harshest outdoor elements.

The Bullet AC integrates a separate Wi-Fi radio for fast and easy setup using the Ubiquiti Network Management System (UNMS) app on your mobile device.

  • 2412 – 2462 MHz / 5725 – 5850 MHz
  • Gigabit Ethernet Port
  • N-Type Connector
  • AC to 24VDC, 0.5A Gigabit PoE Adapter
  • 24V Passive PoE

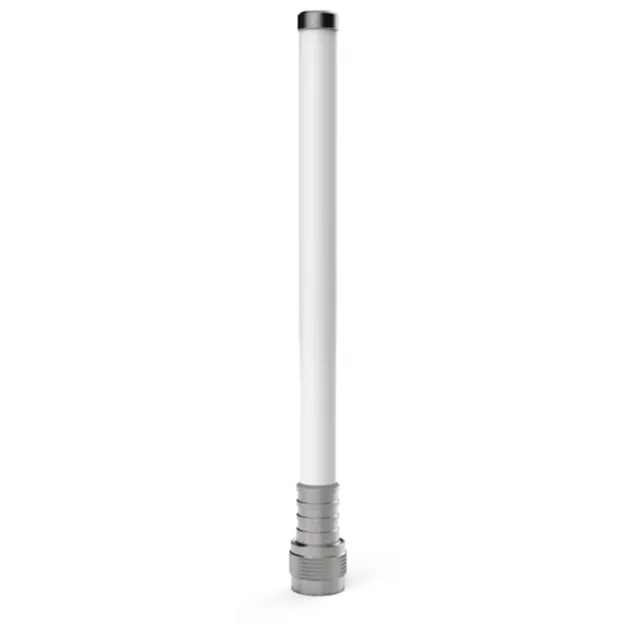

5 GHz 5 dBi Omni Directional Antenna

  • Frequency Range: 4900 MHz – 6200 MHz
  • V.S.W.R (MAX): 2.0:1
  • Radiation: Omni Directional
  • Antenna Type: Co-linear Dipole
  • Gain (MAX): 5 dBi
  • Polarization: Linear
  • Input Power: 5 Watts
  • Vertical Beam – width: 21°
  • Horizontal Beam – width: 360°
  • Impedance: 50 Ohm
  • Internal Material: PCB + Spring
  • Connector: N-Male

Additional information

Weight 40 oz
Dimensions 12 × 5 × 5 in
Number of Stations in your kit

1 Station, 2 Stations, 3 Stations, 4 Stations
