Tycon Power Systems: TP-DCDC-1248GD 9-36VDC In 48VDC 802.3af/at Out 17W DC


  • Input Voltage 12VDC or 24VDC or 48VDC
  • IEEE 802.3af/at Compliant or Passive PoE Output
  • Dual Inputs for Connecting 2 Power Sources
  • Integrated 10/100/1000MB PoE Inserter
  • High Power up to 35W. Low Self Consumption Power.
  • Short Circuit, Over Current and Reverse/Over Voltage Protect
  • High Temperature OperationCompact Size – Maximize Available Space
  • Works well with Ubiquiti Wireless Ethernet Bridges. Ubiquiti is crushing the competition.

In stock

SKU: TP-DCDC-1248GD Category:

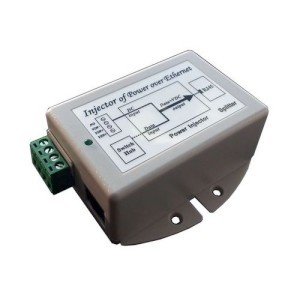

TP-DCDC-1248GD Power Injector for Ubiquiti Bridges. Works with HSK-PTP-NS-L5AC-WPS

Gigabit 9-36VDC IN 48VDC OUT 17W DC to DC Converter and 802.3af PoE inserter.

802.3af Compatible. Will only power up when connected to an 802.3af device.

The TP-DCDC-1248GD DC to DC converters offered by Tycon Power Systems are a low cost and high-reliability solution for those requiring 48VDC 802.3af Power Over Ethernet voltage from a 12 or 24V battery system.

They have an integrated Gigabit 802.3af PoE injector to apply the regulated 48VDC to the CAT5 Ethernet cable. The input voltage must be between 9VDC and 36VDC.

They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.
They work by supplying power on the Ethernet pins 4,5(V+) and 7,8(V-).

They have various protections for surge, short circuit, and overload. The units have a power output of 17W.

Additional information

Weight 4.7 oz
Dimensions 3.4 × 3 × 1.4 in
