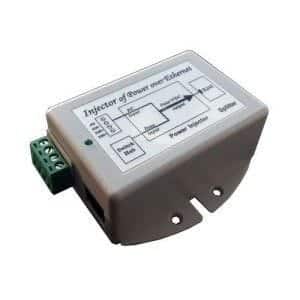

Tycon Power Systems TP-DCDC-1224G 12/24V Gigabit Passive PoE Injector


  • Input Voltage 12VDC or 24VDC or 48VDC
  • IEEE 802.3af/at Compliant or Passive PoE Output
  • Dual Inputs for Connecting 2 Power Sources
  • Integrated 10/100/1000MB PoE Inserter
  • High Power up to 35W. Low Self Consumption Power.
  • Short Circuit, Over Current and Reverse/Over Voltage Protect

Available on backorder|Special Order 14 days

SKU: TP-DCDC-1224G Category:


TP-DCDC-1224G Solar Power Injector for Ubiquiti Bridges. This integrated poe injector orks with HSK-PTP-NS-LOCOAC

The TP-DCDC-1224G DC to DC converters offered by Tycon Power Systems is a low-cost and high-reliability solution for those requiring 24VDC Gigabit Power Over Ethernet voltage from a 12 or 24V battery system.

They have an integrated Gigabit PoE injector to apply the regulated 24VDC to the CAT5 Ethernet cable. The input voltage must be between 9VDC and 36VDC.

They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).

They have various protections for surge, short circuit, and overload. The units have a power output of 19W.

This dc converter can be used as a backup power source with solar. It can power wireless access points and other client devices.


Additional information

Weight 4.7 oz
Dimensions 3.4 × 3 × 1.4 in

This product works with…
