Tycon Power Systems: TP-DCDC-1218 9-36VDC IN 18VDC OUT 18W DC to DC
TP-DCDC-1218
- Input Voltage 9-36VDC; Output 18VDC Passive PoE
High Power 18W
- Short Circuit, Over Current, and Over Voltage Protection
High-Temperature Operation
- Removable Wire Terminal Input for up to 12AWG wires
- 9-36VDC IN, 18V 18W Passive PoE OUT, DC to DC Converter/PoE inserter.
- 10/100Mb Ethernet.

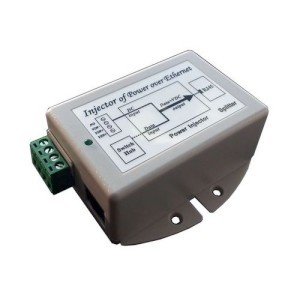

TP-DCDC-1218 Solar Power Injector for Ubiquiti Bridges. Works with HSK-PTP-NS-LOCOM2 and HSK-PTMP-BULLETM2-LOCOM2
The TP-DCDC-1218 DC to DC converters offered by Tycon Power Systems is a low cost and high-reliability solution for those requiring 18VDC Power Over Ethernet voltage from a 12 or 24V battery system.
They have an integrated PoE injector to apply the regulated 18VDC to the CAT5 Ethernet cable. The input voltage must be between 9VDC and 36VDC.
They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.
They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).
They have various protections for surge, short circuit, and overload. The units have a power output of 18W.
