LigoWave Preconfigured Wireless Bridge Kit (WBS-PTP-LW-5AC)

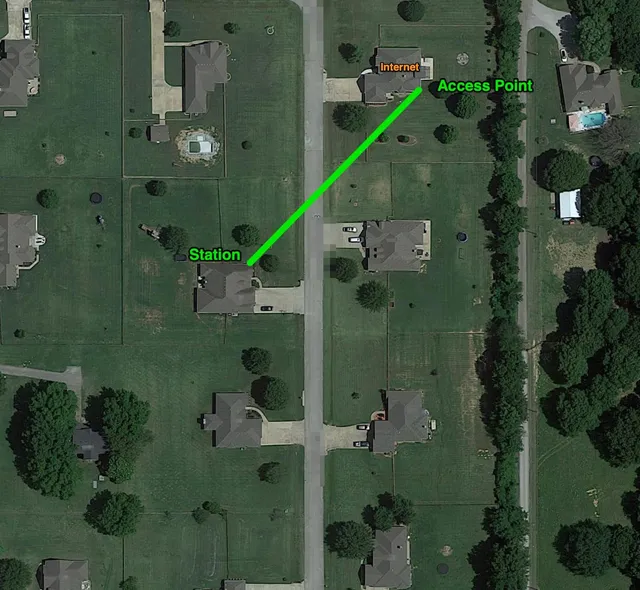

PTP link

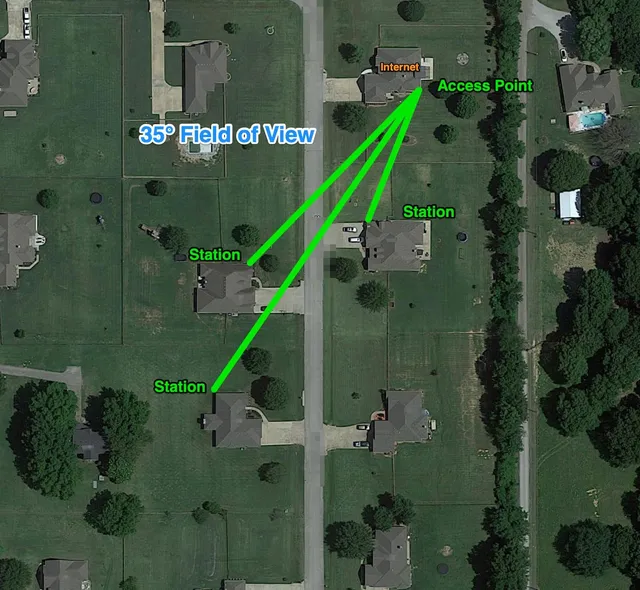

35° field of view

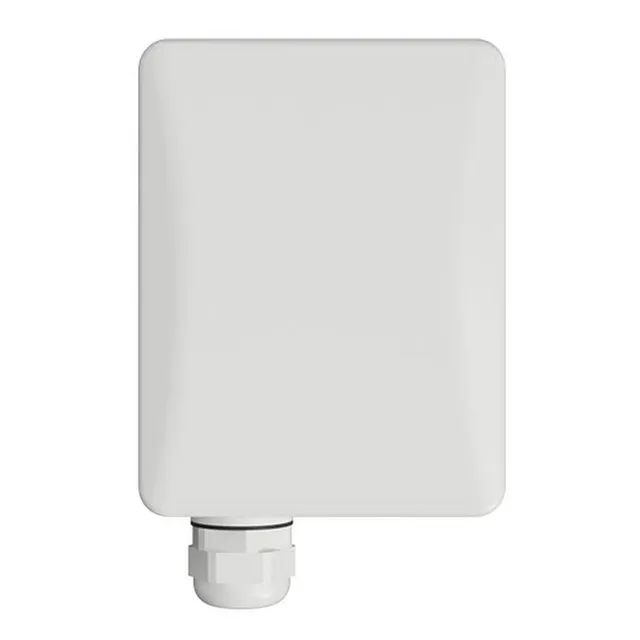

WBS-PTP-LW-5AC

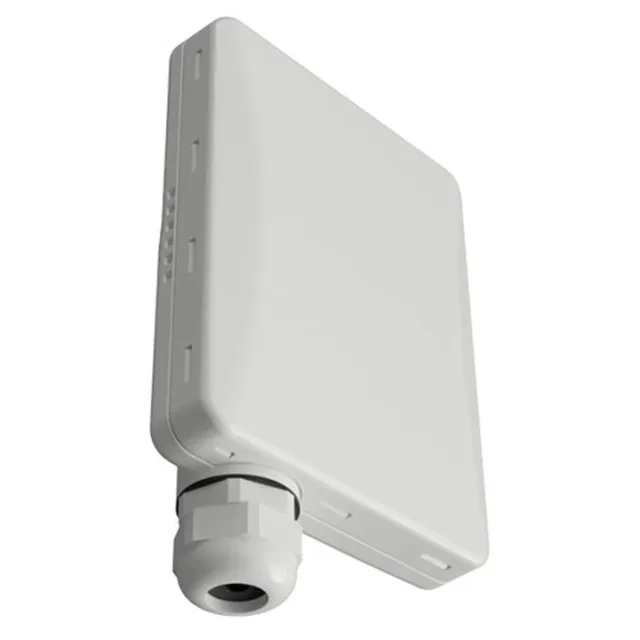

WBS-PTP-LW-5AC

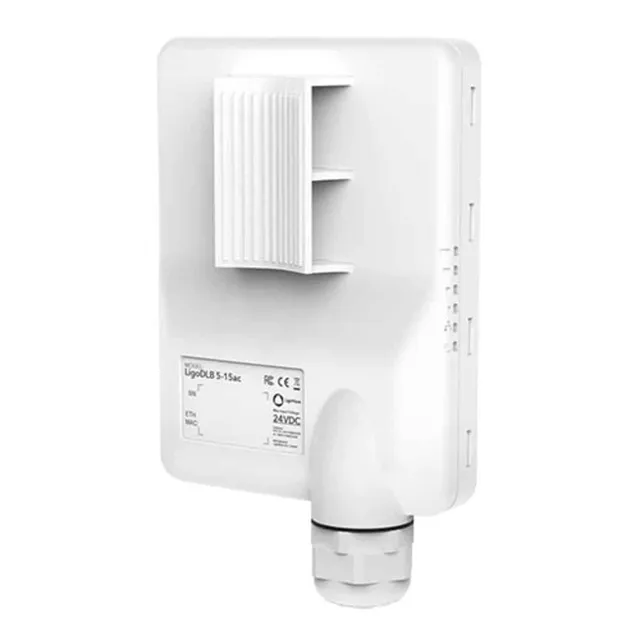

WBS-PTP-LW-5AC

LigoWave Wireless Bridge Kit (WBS-PTP-LW-5AC)

(1 customer review)

$299.00 – $670.13

LigoWave Wireless Bridge

  • WORKS WITH STARLINK: Our LigoWave wireless bridge work with Starlink. This is the bridge kit that can share your Starlink installation with all of your buildings properly.
  • SHARE YOUR INTERNET: Share your local network with your buildings without digging trenches and running wire! Finally, the Internet is in the shop for email and youtube.
  • PLUG AND PLAY: Just plug one ethernet cable into your Local Area Network and the included power/LAN brick, and the other ethernet cable, which supports Power over Ethernet, into the LigoWave LigoDLB 5-15AC. Point them at each other. That’s It!
  • NO CONFIGURATION NEEDED: We did all the hard work. Each pair is expertly configured in Bridge Mode with a randomly generated unique WPA Key and a randomly generated unique SSID. Once they are connected, the remote building is on your local network.
  • ONE INTERNET BILL: Stop paying your ISP for a separate Internet connection for your other buildings. Connect them with this outdoor wireless bridge to your main building and save!
  • LONG DISTANCE HIGH SPEED: The LigoWave LigoDLB 5-15AC use the 5GHz band. With a clear line of sight, these transmitters can create a wireless bridge 4 miles apart! These wireless network extenders are capable of speeds of 500+ Mbps throughput.
  • WHICH WIRELESS BRIDGE IS RIGHT FOR YOU: Check our Chart or Contact us and let us know your project goals, and we’ll help you decide.

  • NOTE: Stations need to be within a 35° field of view of the Access Point

SKU: WBS-PTP-LW-5AC Categories: , , , , Tags: , , ,

Description

LigoWave Wireless Bridge

LigoWave Wireless Bridge is a powerful and easy-to-use solution that can help you share your Starlink installation with all of your buildings. The LigoWave Wireless Bridge kit includes everything you need to connect your Starlink system to multiple buildings properly, and it’s easy to set up and use. With the LigoWave Wireless Bridge, you’ll be able to extend your Starlink coverage to all of your buildings, ensuring that everyone has access to high-speed internet. And because the LigoWave Wireless Bridge is so easy to use, you’ll be able to get started sharing your Starlink connection with all of your buildings in no time. So if you’re looking for an easy way to share your Starlink connection with all of your buildings, the LigoWave Wireless Bridge is the perfect solution.

LigoWave LigoDLB 5-15AC Radio

The LigoWave LigoDLB 5-15AC Radio is a 5 GHz high-capacity wireless device. It features 500+ Mbps throughput – a result of a powerful hardware platform with 802.11ac technology-based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM, and 16 MBytes of flash memory, the LigoDLB 5-15 ac series devices are an ideal solution for capacity-demanding applications.

State-of-the-art RF design with great output power and sensitivity parameters improves range and capacity over the highest modulation – 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLB ac series devices are backward compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.

Antenna Type

Integrated dual-polarized directional panel antenna Gain 15 dBi

Wired Interface

10/100/1000 Base-T, RJ45

Physical Dimensions

158 mm (6.2 ‘’), 97 mm (3.8 ‘’), 38 mm (1.5 ‘’) Weight 185 g (0.4 lb) Mounting Pole mounting bracket included

Power

Power supply 24 VDC passive PoE (AC to 24 VDC adapter is included in the package) Power source 100 – 240 VAC Power consumption (max) 10 W

Environmental Operating temperature

-40°C (-40 F) ~ +65°C (+149 F) Humidity 0 ~ 90 % (non-condensing)

Antenna specifications

Frequency range 5.1 – 5.9 GHz

Gain 15 dBi

Polarization Dual linear

Cross-pol Isolation 21 dBi

VSWR <1.4

Azimuth beamwidth (H pol) 35 deg

Azimuth beamwidth (V pol) 35 deg

Elevation beamwidth 35 deg

LigoWave LigoDLB 5-15AC Data Sheet

LigoWave LigoDLB 5-15AC User Guide

Additional information

Weight 37 oz
Dimensions 11 × 7 × 3.5 in
Number of Stations in your kit

1 Station, 2 Stations, 3 Stations, 4 Stations

1 review for LigoWave Wireless Bridge Kit (WBS-PTP-LW-5AC)

  1. Dan –

    LigoWave Wireless Bridge Kit is a top-of-the-line solution for expanding your network! The kit makes it easy even for tech novices to set up. LigoWave Wireless Bridge Kit gets two enthusiastic thumbs up from us!

Add a review

NOTE: You do NOT need to log into these units to get them to work initially. If you are having issues, please contact us before you log in.

LigoWave WBS-PTP-LW-5AC

  • username: admin
  • password: admin01
  • Station fallback IP address is 192.168.2.67
  • Access Point fallback IP address is 192.168.2.66
  • WPA KEY: Random unique to each kit

NOTE: You do NOT need to log into these units to get them to work initially. If you are having issues, please contact us before you log in.
LigoWave WBS-PTP-LW-5AC
username: admin
password: admin01
Station fallback IP address is 192.168.2.67
Access Point fallback IP address is 192.168.2.66
WPA KEY: Random unique to each kit

It is 35°

here is one ethernet port on each unit. That port connects to the POE ethernet port on the included power block and there is another ethernet port on the power block that you can connect to a router, switch or computer

Absolutely! These can take anything mother nature throws at them.

No. If they are not working right out of the box please contact us. There is no reason to log into these units to get them to work.

It does not matter. You can place the Access Point or the Station at either end of a point-to-point bridge. If you are doing a point-to-multi-point bridge, where you have an Access Point and multiple Stations. You just want to make sure that all Stations are within the field of view of the Access Point. Stations connect to Access Points.

You can repurpose a WiFi router to use for your WiFi at your remote location. You will plug the ethernet cable coming from the LAN port of the remote locations power brick into the WAN/Internet port of the repurposed router. It should already be configured to DHCP and should grab an IP address off your network once the wireless bridge comes online.
