Description

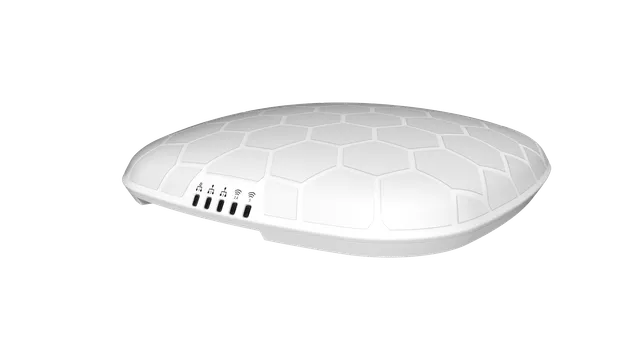

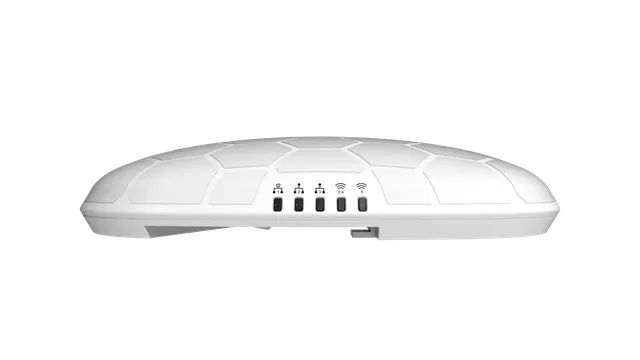

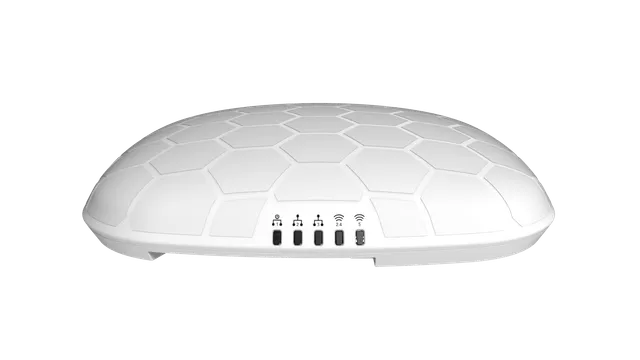

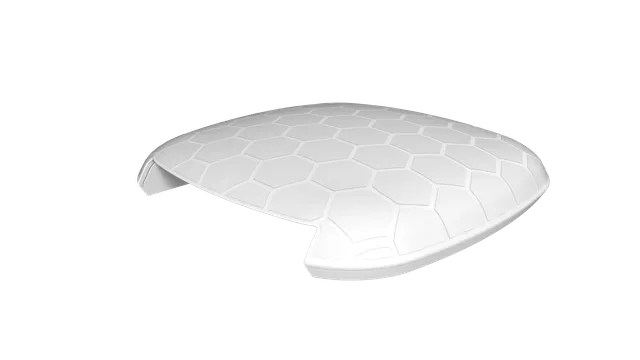

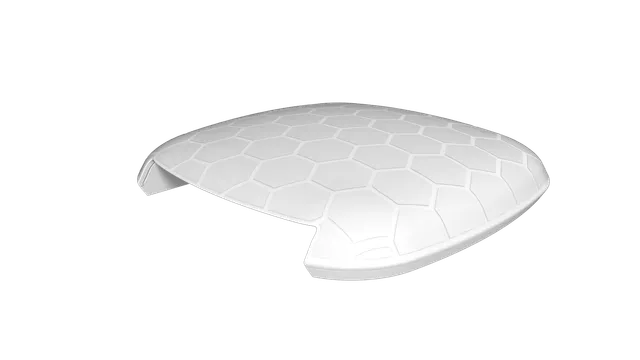

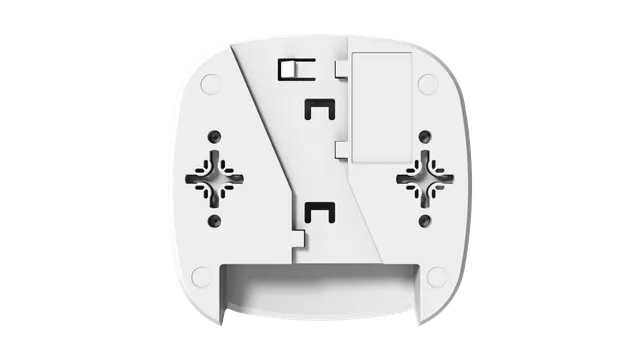

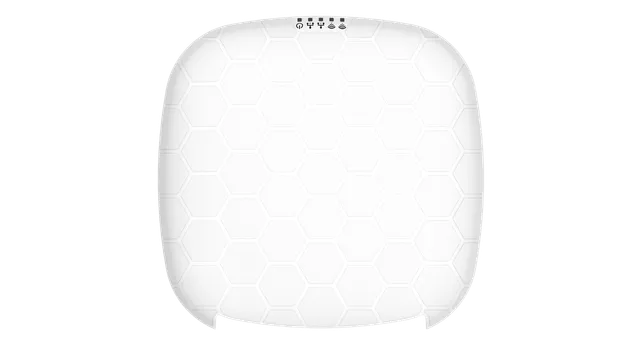

The LigoWave DLB-NFT-2AC is a WI-FI access point based on 802.11ac technology with an integrated 2.4 and 5GHz (2×2) MiMo radios with 27dBm output power. The gigabit Ethernet port with 802.3af/at support allows powering the device with PoE switches. Two additional Gigabit Ethernet ports allow extending the network or connecting additional devices to the access point. Small form factor (15cm only), sleek design and unique mounting bracket makes the NFT 2ac ideal for indoor installations requiring cost-effective high-performance devices.
- WLAN Standard: IEEE 802.11a/b/g/n/ac
- Radio Mode: MIMO Dual 2×2
- Operating Mode: Access Point, Repeater
- Radio Frequency Band:
- 2.402-2.484GHz (Country-Dependent) FCC 2.412-2.462GHz (CH1-CH11)
- 5.170-5.875GHz (Country-Dependent) FCC 5.745-5.825GHz (CH149-CH161)
- Transmit Power:
- 2.4GHz: 27dBm @ MCS0
- 5GHz: 27dBm @ MCS0
- Channel Size: 20, 40, 80MHz
- Modulation Schemes:
- 802.11ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
- 802.11a/g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
- 802.11b: DSS (CCK, DQPSK, DBPSK)
- Data Rates
- 802.11ac @ 80MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65Mbps
- 802.11n @ 40MHz: 300, 270, 240, 180, 120, 90, 60, 30Mbps
- 802.11a/g @ 20MHz: 54, 48, 36, 24, 18, 12, 9, 6Mbps
- 802.11b @ 20MHz: 11, 5.5, 2, 1Mbps
- Duplexing Scheme: Time division duplex
- Wireless Security: WPA/WPA2 Personal, WPA/WPA2 Enterprise, WACL, Hotspot (UAM)
- Roaming: Yes
